Brand Name : Kinglong drilling
Model Number : Tapered Button Bits
Certification : ISO9001
Place of Origin : China
MOQ : 5pcs
Price : negotiable
Payment Terms : T/T, Western Union
Supply Ability : 5000pcs per month
Delivery Time : 5 work days
Packaging Details : wooden package
material : Tungsten Carbide
Tapered Button Bits dia. : From 28mm to 42mm
Taper Degree : 6°, 7°, 11°, 12°
Matched Hex Rods Size : Hex22, Hex25
Use : Mining or Quarry or well drilling
Type : Drill Bit,Button bit
Machine type : Drilling Tool
Processing type : Forging,Casting
Color : Customized,Gold

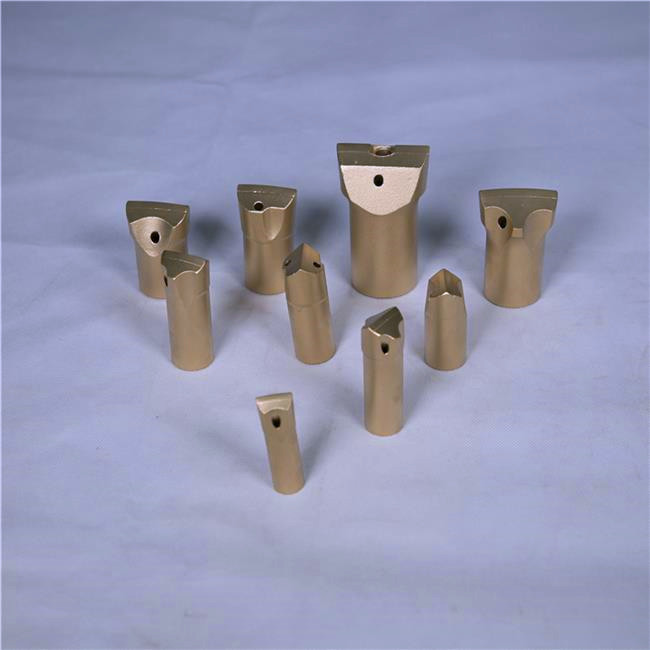

2019 China Rock Drilling Tapered Chisel Bit 7-13 Degrees for small hole drilling
King-Long Rock Drilling Bits
Some Features of King-Long Brand Rock Drilling Chisel Bits.
A: Fantastic Steel Material Imported from Sweden and USA.
B: Extra Bigger Width of Tungsten Carbide Inserts.
C: Cross Tapered Bit Top Head Diameters: From 28mm to 42mm.
D: Customer-made Rock Drilling Chisel Bits are also available by order.
E: Taper Connection Degree: 6,7, 11,12
F: Hex Drill Rods Matched: Hex22, Hex25
G: Steels Material Chemical Name:42CrMo 45CrNiMoV(By Request)
H: Processing: Forging.
I: Color Available: Red, Blue, Gold, White, Yellow, or customer request.
J: Connection Machine Types: Hand-Held Jack Hammer Y20 Y24 Y26 YT28.
Shank Size | Diameter | Tip size(mm) | Part Number | Weight | ||
H22x108mm | mm | inch | Height | Width | Kg | |
| 26 | 1 1/32 | 10 | 7 | TC26H22 | 0.17 |
28 | 1 7/64 | 10 | 8 | TC28H22 | 0.18 | |
30 | 1 3/16 | 11 | 8 | TC30H22 | 0.22 | |
32 | 1 1/4 | 12 | 8 | TC32H22 | 0.24 | |
34 | 1 11/32 | 13 | 8 | TC34H22 | 0.27 | |
36 | 1 27/64 | 13.5 | 8 | TC36H22 | 0.30 | |
38 | 1 1/2 | 13.5 | 9 | TC38H22 | 0.33 | |
40 | 1 37/64 | 15 | 9 | TC40H22 | 0.38 | |
42 | 1 21/32 | 15 | 9.2 | TC42H22 | 0.39 | |
43 | 1 11/16 | 15 | 9.8 | TC43H22 | 0.41 |
Advantages of King-Long Cross Bits:
A: High Effective Penetration Speed.
B: Easy Operation for all Operators.
C: Production is fast and simple, lower labor cost and cheaper price for market users.
D: Very Adaptable for Various Rock Informations.
Application of Cross Insert Bits: Mining, Tunneling, Construction Project etc. Especially good at Coal Mining Drilling Business.
![]() |
