Brand Name : Kinglong
Certification : IS9001
Place of Origin : Wuhan
MOQ : 1PC
Price : USD20-50pc
Payment Terms : T/T, Western Union
Supply Ability : 50000PCS per month
Delivery Time : 5-8 days
Packaging Details : wooden package
Material : Tungsten Carbide
Use : Rock Drilling
Type : Drill Bit
Machine type : Drilling Equipment
Processing type : Forging
Color : Customized,Red,BLUE,yellow.black,Gold
China manufacture t38 r38 thread bit 34mm tapered button bits for rock drilling
Size:76mm-605mm
Hammer: 2”-12”
Package: in wooden case
Productivity: 2000pcs/month
1.Suitable for high pressure drilling rigs
2.Water well drilling
3.Record breaking penetration
4.Exploring Civil Engineering Applications
5.Lowest cost per foot drilled
6.Simple & robust design
7.Exploring Civil Engineering Applications
8.Foot Valve not required in the bit
9.Longer parts life
10.Maximizes efficiency
11.Develops greater power for any compressor capacities
Specification
Dia.(mm) | Thread Connection | Buttons | Air Holes | Weight(kg) | Product Code | ||
Gauge | Front | ||||||
Qty×Dia. | Qty× Dia. | Front | Side | ||||
51 | R32 | 4×11 | 2×9 | 1 | 2 | 1 | 190015 |
64 | R32 | 6×12 | 3×11 | 3 | 1 | 1.7 | 190035 |
64 | T38 | 6×12 | 3×10 | 1 | 2 | 1.7 | 190045 |
76 | T38 | 7×12 | 4×10 | 3 | 1 | 3 | 190055 |
76 | T45 | 8×11 | 6×10 | 4 | - | 3 | 190085 |
78 | T38 | 8×11 | 5×11 | 4 | - | 3.1 | 191625 |
89 | R32 | 8×12 | 6×11 | 4 | - | 3.5 | 190935 |
89 | R38 | 8×12 | 6×11 | 4 | - | 3.5 | 190925 |
89 | T45 | 8×12 | 6×11 | 4 | - | 3.5 | 190095 |
89 | T51 | 8×12 | 6×11 | 4 | - | 4.5 | 191045 |
102 | T45 | 8×14 | 6×13 | 4 | - | 5.5 | 191465 |
102 | T51 | 8×14 | 6×13 | 4 | - | 5.5 | 191055 |
105 | R38 | 8×14 | 6×13 | 4 | - | 4.5 | 190945 |
115 | R38 | 8×14 | 7×13 | 4 | - | 4.8 | 190955 |
115 | T51 | 8×14 | 7×13 | 4 | - | 4.8 | 191065 |
125 | R38 | 8×14 | 8×13 | 4 | - | 5.5 | 190965 |
127 | T51 | 8×14 | 8×13 | 4 | - | 6.5 | 191075 |

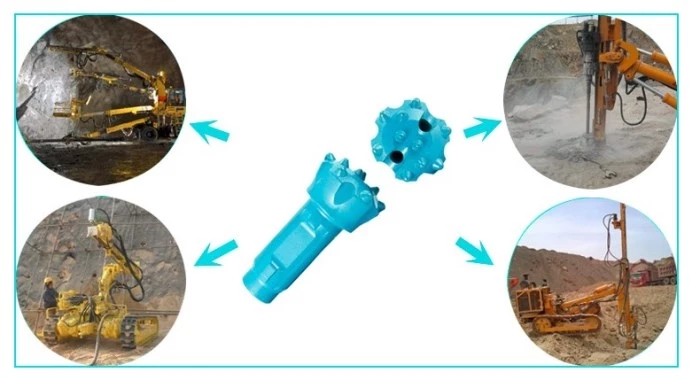

Quarry rock button drill bits for rock drilling can also be used for anchoring, water wells, water conservancy, power plant, open mining, road building and other blasting hole constructions.
We can design and manufacture according to customer's requirement of the Bit DiaNo. Air holescarbide button shape and the face shape. High air pressure and low air pressure.
All products are compatible with many products manufactured by , Atlas Copco, etc, all our products are widely used in mining, tunneling, quarrying, construction, and civil engineering project.
Q1.Why choose us?
A1. High quality products. Good price, professional team work, Enough ability to export.
Q2. Where are our products applied to?
A2.Mine, tunnel,slope,foundation pit.
Q3. Do you have different quality for different kind of stone?
A3. Yes, according hardness of stone and stone’s feature, we have different typology respectively.
Q4. If we need technical support, can you offer us?
A4. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our
product managerment staff, engineers and technicians.
Q5. Do you offer free samples?
A5. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
Q6. Is there cheap shipping cost to import to our country?
A6. For small order, Express will be the best.
And for bulk order, sea ship way is best but take longer time.
For urgent orders, we suggest via air to airport or by Express send to your door.
Q7. Which Express company you send? How many days we can receive?
A7. We are official partner of TNT, UPS, DHL, Fedx. it will take only 3-5 days after we sent.
Q8. When you can reply to me when I send you an Inquiry?
A8. We promise to reply within 24 hours( including holidays) on receipt of your inquiry.
Q8. Are you a manufacturer or trading company?
A8. We are manufacturer.
![]() |

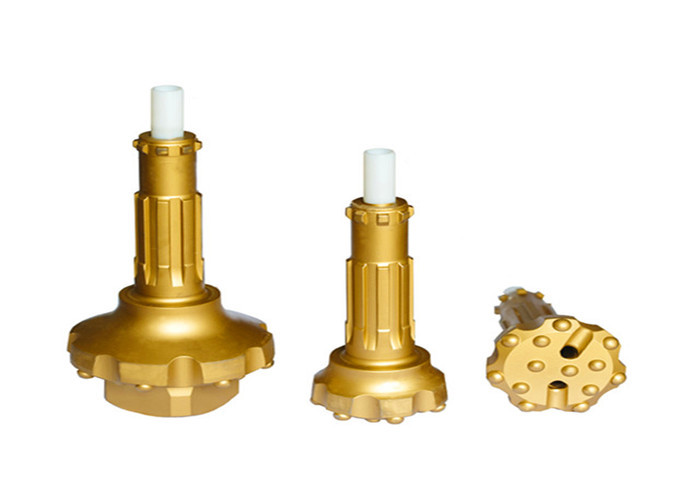

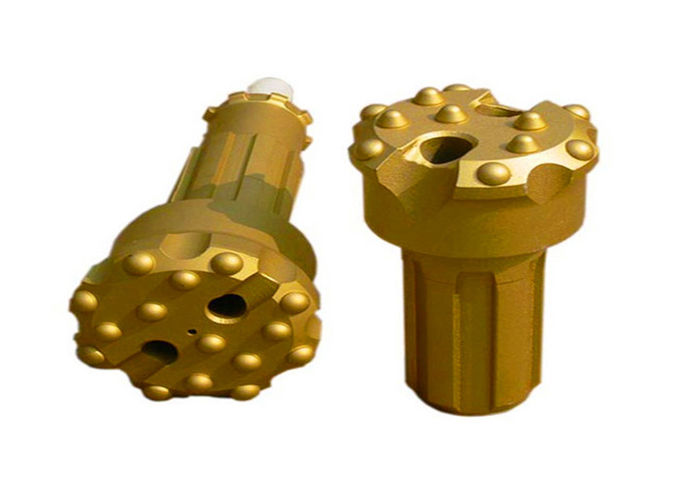

China manufacture t38 r38 thread bit 34mm tapered button bits for rock drilling Images |
