Brand Name : Kinglong drilling
Model Number : Down the Hole DTH bits
Certification : ISO9001
Place of Origin : China
MOQ : 5pcs
Price : negotiable
Payment Terms : T/T, Western Union
Supply Ability : 5000pcs per month
Delivery Time : 5 work days
Packaging Details : wooden package
type : down the hole bit DTH bit
Heat treatment : hot press insert
Formation : Hard Formations
Bit face : Flat face , Concave face , Convex face

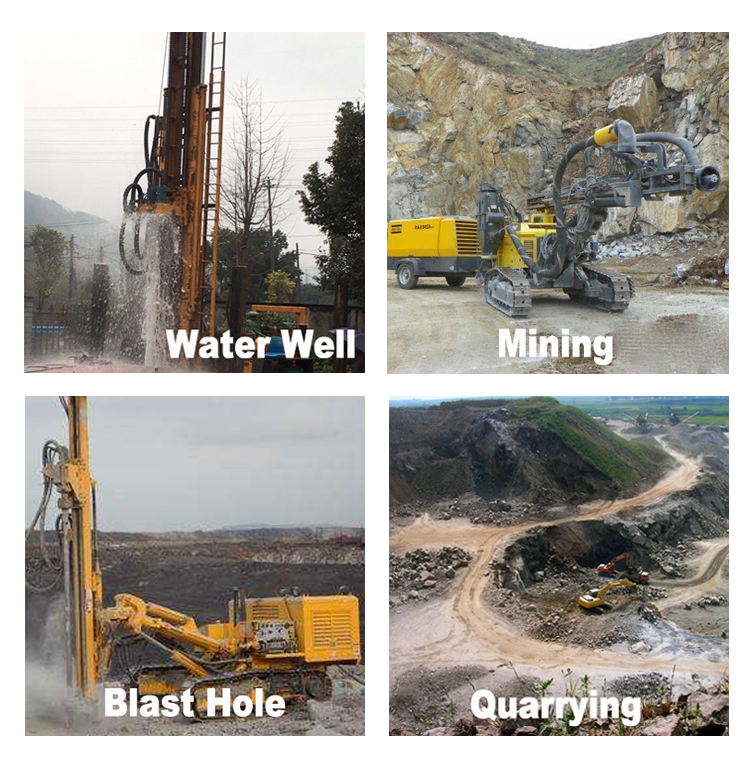

Use : Ore mining . Rock drilling , Water well
Machine type : Drilling Tool
Processing type : Forging
Color : Customized,Gold
Warranty : 1 Year
Condition : New and customizable
Mining Machinery Parts Carbide Button DTH Hammers Drill Bits for quarry mining
Kinglong Drills offer a comprehensive range of DTH drill bits with all diameters of the current prevailing manufacturers’ hammer shank designs to match various drilling applications. Our drill bits are multiple heat-treated to enhance hardness, surface-compressed for fatigue resistance, all thus to extend the product life for maximum wear and performance in the toughest of drilling conditions. Moreover, all these bits are also made from high quality alloy steels and fitte with premium quality tungsten carbide tips for superior penetration rate.
1.high and low air pressure down-the-hole drill bits
2.Low air pressure holeDia.:65-220mm
3.High air pressure hole Dia.:85-305mm
4.Face type:drop center/concave/convex/double gauge/flat
5.Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.
DTH Bits for Shank Hammer Model-Foot Valve
Ingersoll-Rand
DHD3.5 Bits Dia: 90mm-102mm.
DHD340 Bit Dia: 105mm-127mm.
DHD350 Bit Dia: 133mm-152mm.
DHD360 Bit Dia: 152mm-216mm.
DHD380 Bit Dia: 203mm-254mm.
QL40 Bit Dia: 105mm-127mm.
QL50 Bit Dia: 133mm-152mm.
QL60 Bit Dia: 152mm-216mm.
QL80 Bit Dia: 203mm-254mm.
Hammer Model
SD4 Bit Dia: 105mm-127mm.
SD5 Bit Dia: 133mm-152mm.
SD6 Bit Dia: 152mm-216mm.
SD8 Bit Dia: 203mm-254mm.
Atlas Hammer Model
COP32 Bit Dia: 90mm-102mm.
COP42 Bit Dia: 105mm-127mm.
Specification
Bit size | Shank type | Recommended DTH bir diameter |
3.5''/3'' DTH Hammer bits | COP34, DHD3.5, MISSION30, BR3 shank | 90mm to 105mm |
4'' DTH Hammer bits | DHD340, QL40, MISSION40, SD4 shank | 110mm to 130mm |
5'' DTH Hammer bits | DHD350, QL50, MISSION50, SD5 shank | 134mm tio 152mm |
6'' DTH Hammer bits | DHD360, QL60, MISSION60, SD6 shank | 152mm to 203mm |
8'' DTH Hammer bits | DHD380, QL80, MISSION80, SD8 shank | 203mm to 305mm |
12'' DTH Hammer bits | DHD112, SD12 and QL120 shank | Available upon to customers' request |
Besides, we are manufacturing the DTH bits with various shanks so they can be compatible with different DTH hammers .

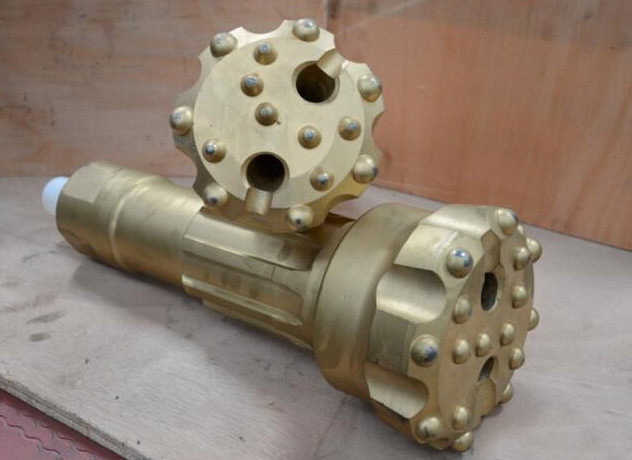

DTH button bits
5 inches DTH hammer button bits | ||||||
Shank style | Diameter in mm | Flat face | Convex face | Concave face | Approx. weight | Part number |
DHD350R
| 135 | √ | √ | √ | 16.2 kgs | DHD350-135 |
140 | √ | √ | √ | 16.5 kgs | DHD350-140 | |
146 | √ | √ | √ | 17.0 kgs | DHD350-146 | |
152 | √ | √ | √ | 17.8 kgs | DHD350-152 | |
165 | √ | √ | √ | 18.5 kgs | DHD350-165 |
Different face style makes DTH bits suitable for various rock conditions.
Flat face: This is an universal design, especially for hard and abrasive rock formation. So typically, flat face with hemi-spherical buttons design is the most popular choice.
Convex face: A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if rocks are hard.
Concave face: Medium hard to hard rock formations which is less abrasive and fractured. Especially for deep hole drilling, excellent control over hole deviation.
Base on comprehensive product range :
1. Construction (Overburden drilling tools. Top hammer drilling tools , Self-drilling anchor system ) .
2. Mining (Top hammer drilling tools , Down The Hole(DTH) drilling tools. Diamond drill tools )
3. Piling (Casing Tube, Down The Hole (DTH) drilling tools . Eccentric casing system.)
4. Water well (Concentric Casing Systems, ,Eccentric casing System. Down The Hole drill bit and hammer ) .
5. Quarry and Aggregate (Down The Hole (DTH) drilling bit and hammer .Long hole drilling tools .H-thread drilling tools .Shank adaptor .Small-hole drilling tools )
![]() |
Mining Machinery Parts Carbide Button DTH Hammers Drill Bits for quarry mining Images |
