Hard Rock Carbide 36mm button bits 11degree 7 tapered buttons bit for Mining

Name: Hard Rock Carbide 36mm button bits 11degree 7 tapered buttons bit for Mining
Brand: Kinglong drilling
Price: 1 USD

Brand Name : Kinglong drilling

Model Number : Tapered Button Bits

Certification : ISO9001

Place of Origin : China

MOQ : 5pcs

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per month

Delivery Time : 5 work days

Packaging Details : wooden package

material : Tungsten Carbide

Tapered Button Bits dia. : 28mm to 45mm

Taper Degree : 6°, 7°, 11°, 12°

Matched Hex Rods Size : Hex22-108mm Drill Rods, Hex25-159mm Drill Rods

Use : Mining or Quarry or well drilling

Type : Drill Bit,Button bit

Machine type : Drilling Tool

Processing type : Forging,Casting

Color : Customized,Gold

Contact Now

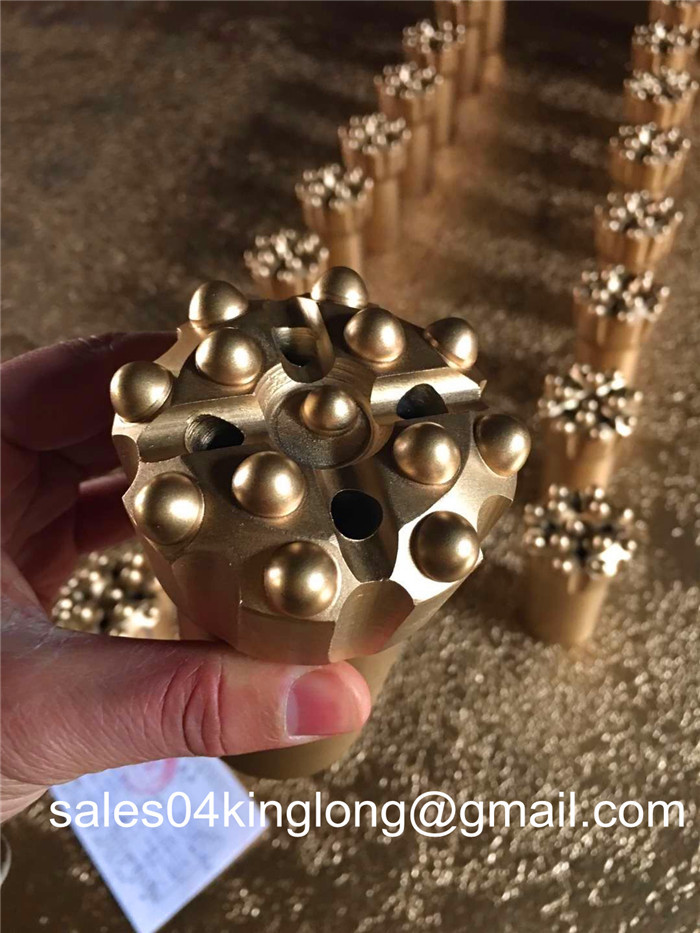

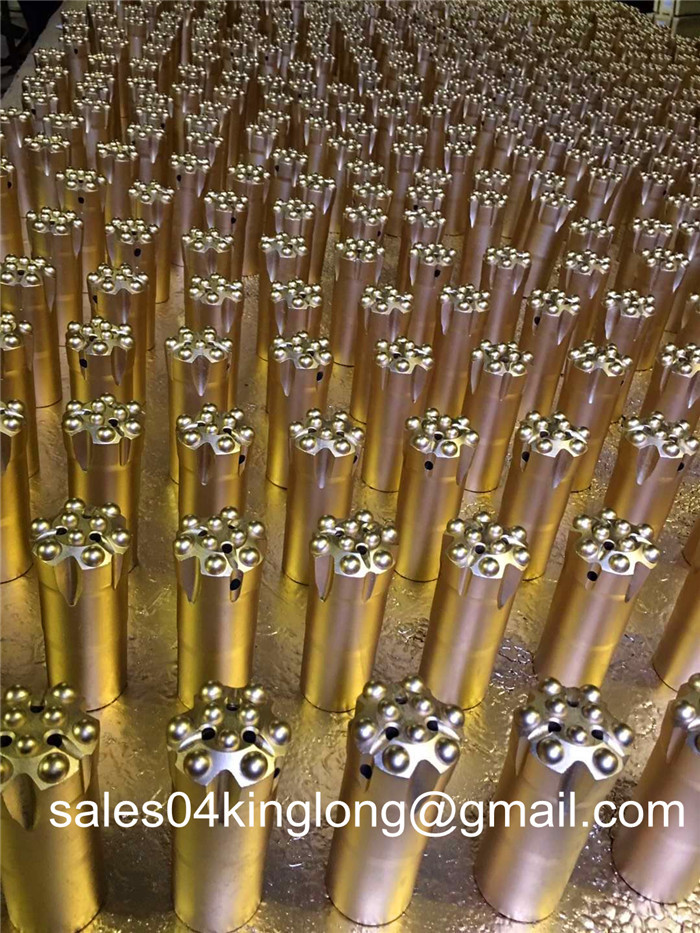

Tapered Button Bits:

Taper Degree: 6°, 7°, 11°, 12°
Diameter: 30mm, 32mm, 33mm, 34mm, 36mm, 38mm, 40mm, 41mm, 42mm
Buttons: 4, 5, 6, 7, 8
Flushing Water Hole Nos.: 1, 2, 3
Skirt: Short, Long

The Tapered Button Bits are connected with the tapered rods through taper to finish drilling work. The Tapered Button Bits are mainly used in the fields of secondary crushing, anchor rod support, tunneling, etc.

Item	Specification 1	Specification 2	OEM Service
Product Name	7 buttons 34mm tapered button bits	7tips 34mm Tapered Drill bit	Available
Material	35CrNiMoV/42crmo	45CrNiMoV	not available
Carbide Size	57mm, 27mm	7*7mm	Available
Diameter	34mm	34mm	Available
Length	65mm	65mm	Available
Socket diameter	22mm	23mm	Available
Uses	Gound drilling	Underground drilling	Available
Color	Original color	red	Available

Hard Rock Carbide 36mm button bits 11degree 7 tapered buttons bit for Mining

With more than 50 years experience in manufacturing and providing rock drilling tools for the mining and drilling industry all around the world, King Long Drills has more than enough experience to provide international service to our most valuable clients.

King Long Drills being one of the most experienced manufacturing of Top Grade Quality Rock Drilling Tools with an extensive ranges of Top Hammer Rock Drilling Tools included underground and surface rock drilling tools and Down the Hole (Normal design of conventional and reverse circulation DTH Drill Bits and Hammers).
