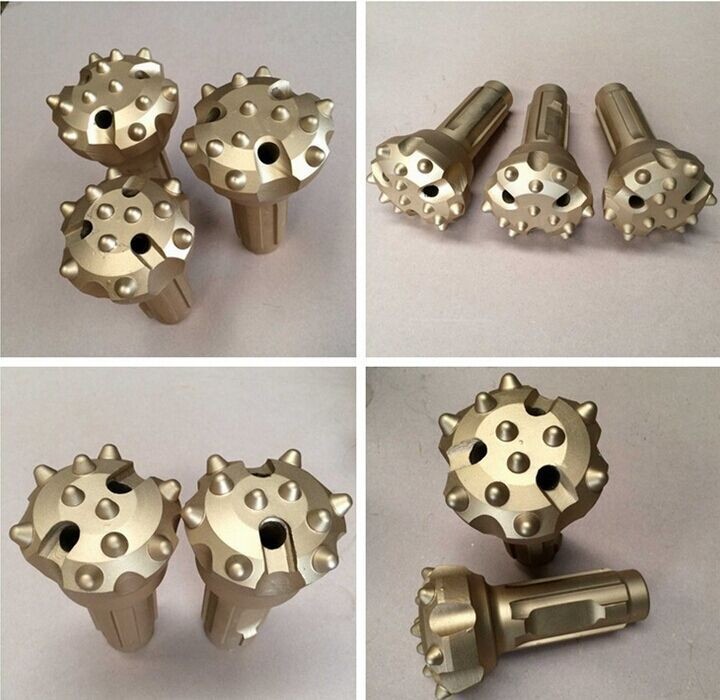

6 inch DTH hammer bits 165mm DHD 360 down the hole bits for water well drilling

  • 1
  • 2
  • 3

Brand Name : Kinglong drilling

Model Number : Down the Hole DTH bits

Certification : ISO9001

Place of Origin : China

MOQ : 5pcs

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per month

Delivery Time : 5 work days

Packaging Details : wooden package

type : down the hole bit DTH bit

Heat treatment : hot press insert

Formation : Hard Formations

Bit face : Flat face , Concave face , Convex face

Use : Ore mining . Rock drilling , Water well

Machine type : Drilling Tool

Processing type : Forging

Color : Customized,Gold

Warranty : 1 Year

Condition : New and customizable

Hammmer : 6inch HD65/DHD360/COP64/SD6/QL60/HM6

Contact Now

6 inch DTH hammer bits 165mm DHD 360 down the hole bits for water well drilling

DTH Drill Bit Products Parameters:
1.high and low air pressure down-the-hole drill bits
2.Low air pressure holeDia.:65-220mm
3.High air pressure hole Dia.:85-305mm
4.Face type: drop center bit/concave face/convex face/double gauge face/flat face bit
5. Carbide button shape: domed/round button parabolic/semi-ballistic button ballistic button sharp button flat button
6. Drill rock type: Granite, Marble, Limestone, Basalt, ect.
7. Project types: Blast holes, Quarry , Anchoring, Infrastructure, Geothermal holes, Well drilling,ect.

Specification

Specification: Diameter: (mm) Weight: (kg)
Low air pressure DTH bits CIR type 68 ~ 200 2.6 ~ 48
Middle air pressure BR & COP type 76 ~ 110 3.8 ~ 15
3 inch high Air pressure DTH bits(COP32/BR3/HD35/IR3.5/COP34/QL30) 85 / 90 / 95 / 100 / 105 4.2 ~ 5.5
4 inch high Air pressure DTH bits(HD45/DHD340A/COP44/SD4/QL40/HM4) 105 / 110 / 115 / 120 / 127 9 ~ 12
5 inch high Air pressure DTH bits(HD55/DHD350R/COP54/SD5/QL50/HM5) 133 / 140 / 146 / 152 / 165 15 ~ 18.5
6 inch high Air pressure DTH bits(HD65/DHD360/COP64/SD6/QL60/HM6) 152 / 165 / 178 / 190 / 203 26 ~ 36
8 inch high Air pressure DTH bits(HD85/DHD380/COP84/SD8/QL80/HM8) 195 / 203 / 216 / 254 / 305 33 ~ 95

NO. Advantages Description
1 Quality 95% quality similarity with world top class brands,such as atlas ingersoll rand etc.
2 Shank Type Our products can be suitable for many types of DTH Hammer, such as QL, Mission, COP, IR, SD,HD,DHD,BR,CIR etc.
3 Materials Our products adopt high-quality raw materials, advanced technology and passed through strictly inspection, making sure the high quality of every dth bits
4 Advantages Our dth bits can transmit intensive impact energy into the rock with the least loss of energy, which can help you improve efficiency and reduce costs
5 Product life We select high-strength structure alloy steel and carbides with best quality to ensure the drill body and alloy body can achieve uniform wear, thus the service life of bits will be increased.

About the quality:

Our DTH Bits has following advantages:

1. 95% quality similarity with world top class brands,such as atlas Copco etc.

2. Strong ability in drilling tools production.

3.Strick quality control.

6 inch DTH hammer bits 165mm DHD 360 down the hole bits for water well drilling

6 inch DTH hammer bits 165mm DHD 360 down the hole bits for water well drilling6 inch DTH hammer bits 165mm DHD 360 down the hole bits for water well drilling

Down the hole bit, DTH bit, DTH rock drill bit, Suitable for hole drilling or breaking the rock—Soft rock, loose-medium rock, hard rock and any other special formations, usually used in Stone/Quarry area, rocky area, and ore exploring. It is the first and important step to explore glod, silver,copper etc ore.

6 inch DTH hammer bits 165mm DHD 360 down the hole bits for water well drilling

Test results

6 inch DTH hammer bits 165mm DHD 360 down the hole bits for water well drilling

Base on comprehensive product range :
1. Construction (Overburden drilling tools. Top hammer drilling tools , Self-drilling anchor system ) .
2. Mining (Top hammer drilling tools , Down The Hole(DTH) drilling tools. Diamond drill tools )
3. Piling (Casing Tube, Down The Hole (DTH) drilling tools . Eccentric casing system.)
4. Water well (Concentric Casing Systems, ,Eccentric casing System. Down The Hole drill bit and hammer ) .
5. Quarry and Aggregate (Down The Hole (DTH) drilling bit and hammer .Long hole drilling tools .H-thread drilling tools .Shank adaptor .Small-hole drilling tools )


Quality 6 inch DTH hammer bits 165mm DHD 360 down the hole bits for water well drilling wholesale
