Whosale Small Home Use Multifunctional Maize Peeler Sheller Thresher Corn Peeling Shelling Threshing Machine
This multifunctional thresher is used for threshing maize, millet, sorghum, beans. It can be drived by motor, diesel engine or gasoline engine. It has the advantage of high efficiency ,low breakage and low impurity.
Maize thresher is mainly composed of drum, concave plate, sieve, fan, feeding hopper, grain sliding plate, spiral guide rod, etc. The utility model adopts an axial-flow threshing device of tangential feeding shaft end row spike shaft.
Technical Specification
| Model | 5TD-700 | 5TD-800 |
| Power | 3kw | 3kw-4kw |
| main shaft speed | 900-1000r/min | 900-1000r/min |
| Capacity | corn:2000-4000kg/h sorghum:800-1000kg/h millet:700-900kg/h soybean:800-1000kg/h | corn:4000-6400kg/h sorghum:1200-1500kg/h millet:1000-1300kg/h soybean:1600-1800kg/h |
| Threshed rate | less than 0.3% | less than 0.3% |
| Total loss rate | less than 3% | less than 3% |
| Weight | 80kg | 150kg |
Working principle
First Step
In the first step, putting the bunch of straw and grains into the feeder. The feeder controls the feed rate to prevent overloading into the machine.
Second Step
The rapidly rotating set of blades, called the separator. The separator first tore the bundles apart, breaking the twine, and snapping the heads from the straw after beating the straw and heads onto a grooved plate, kneeling them without crushing them. Then the straw passed over a
straw rake to remove most of the straw from the kernels.
Third Step
In the last step, the cleaner kernels passed through the last screen were moved over an air stream that blew off the remaining chaff and straw away. The clean or pure grains fell into a feeder where a measuring device measured kernels, and later it blew out onto a straw stack by a
larger, stronger blower.
Feature
Good threshing quality
installation, operation, maintenance is simple
High production efficiency Multifunctional Maize Peeler Sheller Thresher
It is suitable for threshing of corn ears and net ears, and at the same time complete threshing,
clearing loading and bagging operations.
Successful Case
Soybean Sorghum Millet Maize Corn Sheller Thresher Was Driven By Gasoline Engine
Diesel Engine Driven Corn Sheller And Thresher Machine
The raw materials of grain threshing/multi-function corn thresher
(1)wheat (4)soybean
(2)rice (5)mung bean
(3)corn (6)oats
The machine could thresh the corn 5000kg/h, sorghum 1300kg/h, millet 1150kg/h, soybean 1700kg/h.
FAQ
1.How can we get a best price?
Answer:Quality is the heart of one company.We can not promise the lowest price,but we can promise the best quality and most reasonable price.On the other hand,bigger order you placed,cheaper price you will get!
2.Where is your factory located? How can I visit there?
Answer:Our factory is located in Zhengzhou,Henan Province, China.You can fly to Xinzheng Airport directly. We will pick you up on Xinzheng International airport.
3.How about your after-sale service?
Answer: Any question you have,no matter whether in warranty period or not. As long as you give me a email or video. Our engineers and I are very willing to solve the problemfor you.Not only our machine have high quality,but also we have very good aftersales service.So that is why we have many regular customers.
4.The date of delivery.
Answer:Generally within 15 working days.If there is a need for special customization, it may take a little longer.
|
|

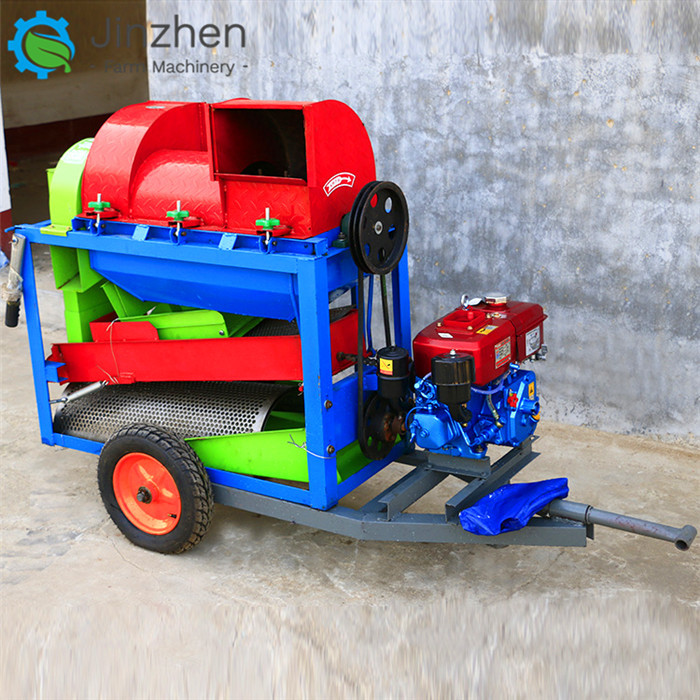

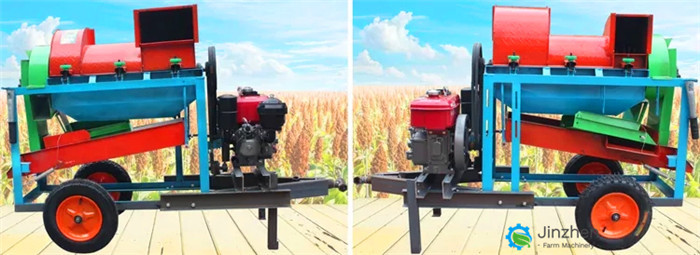

Whosale Small Home Use Multifunctional Maize Peeler Sheller Thresher Corn Peeling Shelling Threshing Machine Images
|
